Find Your Perfect Wheelchair Accessible Vehicle Fit

Compare All BraunAbility Vehicles in Our Dimension Guide

Mobility isn’t a one-size-fits-all solution, which is why BraunAbility offers so many different vehicles, entry types, and entry heights to meet the many preferences of our customers. If you’d like to get a closer look at our portfolio and better understand your many mobility options, download our easy-reference dimension guide. It features every handicap van and wheelchair SUV we offer, along with the most critical wheelchair van and wheelchair SUV dimensions to find the best fit for you.

Buying Your Wheelchair Accessible Vehicle

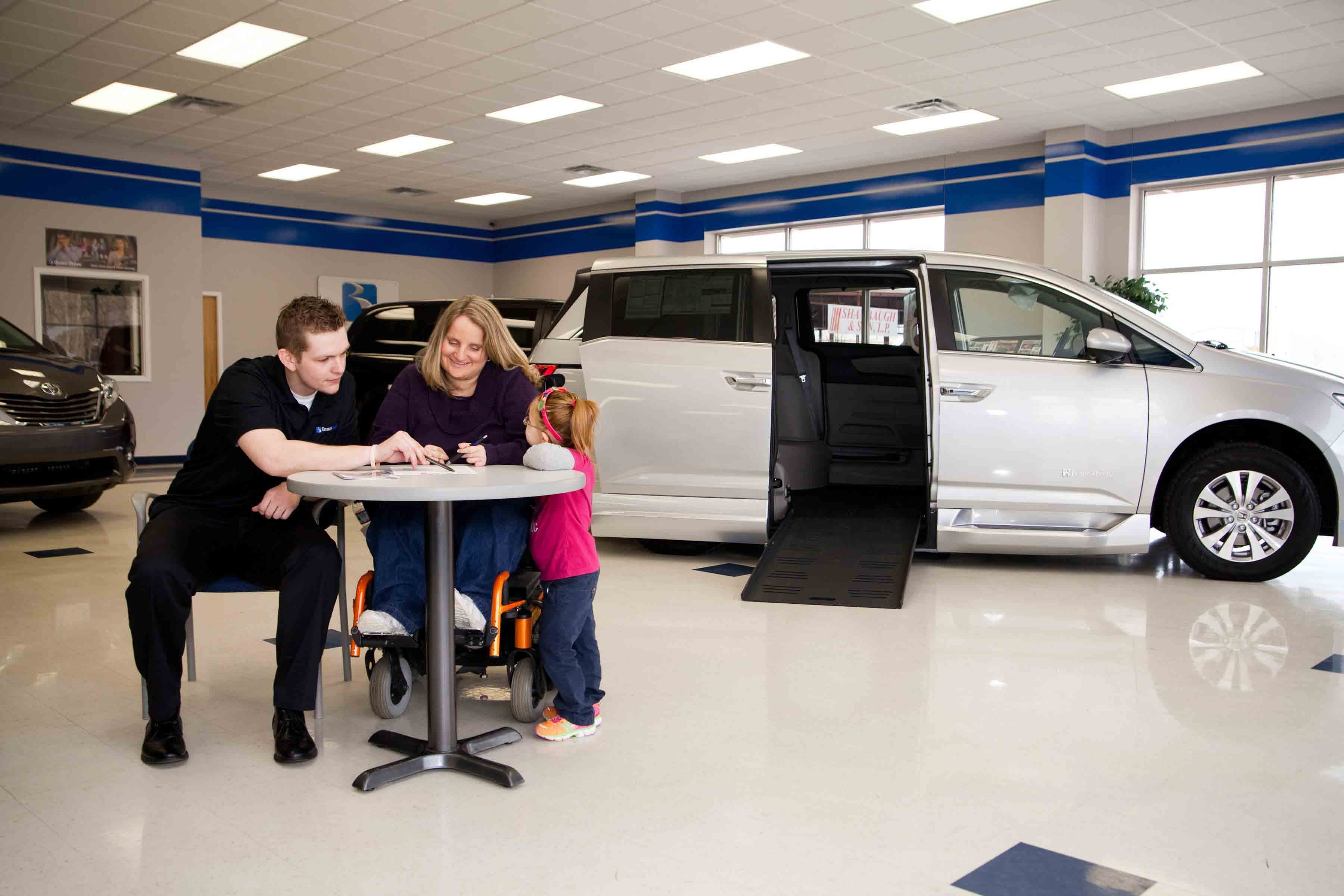

After downloading the BraunAbility Dimension Guide, you may have found one or more vehicles you think will fit you, your wheelchair, and your family. To narrow down your search or to ensure the vehicle you’ve chosen is your best fit, you are ready to see BraunAbility vehicle options in person! There’s no comparison to seeing and trying out a vehicle at a dealership where you can test the entryway height, ramp angle and interior space firsthand. Sometimes, you may determine what you thought could work for you really isn’t comfortable in the end.

Find your local BraunAbility dealer to set up a walk-through appointment, mobility consultation, or test-drive here.

Wheelchair accessible vehicle

BraunAbility Dimension Reference Guide

Make / Model / Years

BraunAbility Model

Code

Door Opening Height

Door Opening Width

Ramp Width

Floor Length All Usable

Floor Length Center

Floor Width B Pillars

Ramp Angle

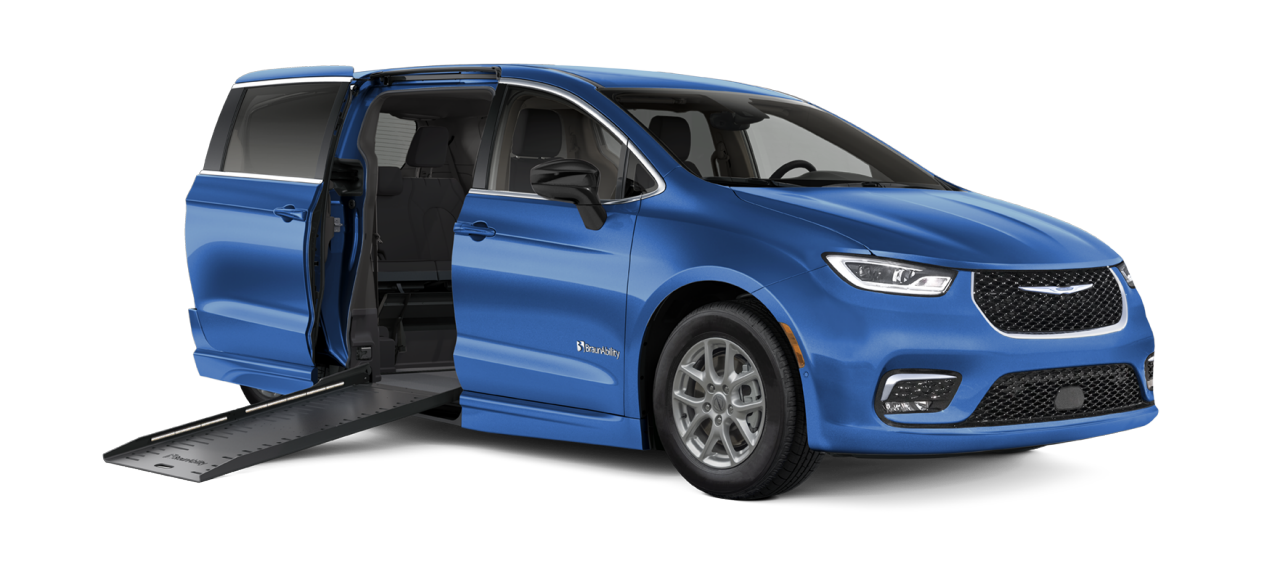

Chrysler Pacifica 2017-2020

Power Foldout

E2

53"

32.375"

30.125"

98.5"

71"

62.25"

9.1°

Chrysler Pacifica 2017-2020

Power Foldout XT

XT

57"

32.375"

30.125"

98.5"

71"

62.25"

8.6°

Chrysler Pacifica 2017-2020

Power Infloor

XI

55"

33.5"

32.25"

98.5"

71"

59.75"

9.9°

Chrysler Pacifica 2017-2020

Manual Rear-Entry

V7

56"

34.5"

34"

98"

N/A

N/A

10°

Dodge Grand Caravan 2013-2019

Power Foldout

E2

52.5"

31.5"

29.25"

87.5"

57"

62"

10.6°

Dodge Grand Caravan 2013-2019

Power Foldout XT

XT

56.5"

31.5"

29.25"

87.5"

57"

62"

9.6°

Dodge Grand Caravan 2013-2019

Power Infloor

XI

55"

32.5"

32"

87.5"

57"

62"

9.5°

Dodge Grand Caravan 2013-2019

CompanionVan Plus Foldout

CP

52.5"

31.5"

29.25"

87.5"

57"

62"

12.2°

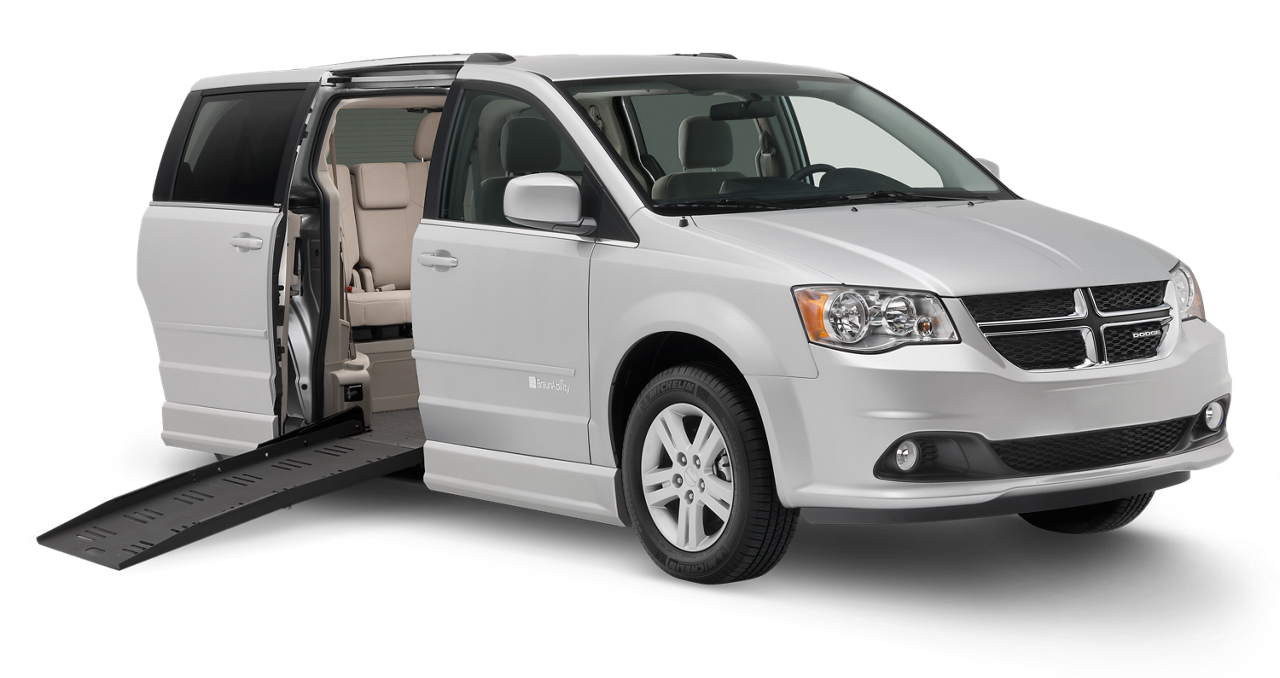

Dodge Grand Caravan 2013-2019

CompanionVan Plus XT Foldout

CX

56.5"

31.5"

29.25"

87.5"

57"

62"

11°

Dodge Grand Caravan 2013-2019

CompanionVan Foldout

CV

52.5"

31"

30"

N/A

55"

59.5"

12.5°

Dodge Grand Caravan 2013-2019

Manual Rear-Entry

V7

54.5"

33.25"

34"

96.5"

N/A

N/A

10°

Dodge Grand Caravan 2013-2019

Power Rear-Entry

V8

54"

31"

30"

87"

N/A

N/A

11°

Honda Odyssey 2018-2020

Power Infloor

XI

55"

30.5"

28.375"

91.5"

57"

60.5"

10.5°

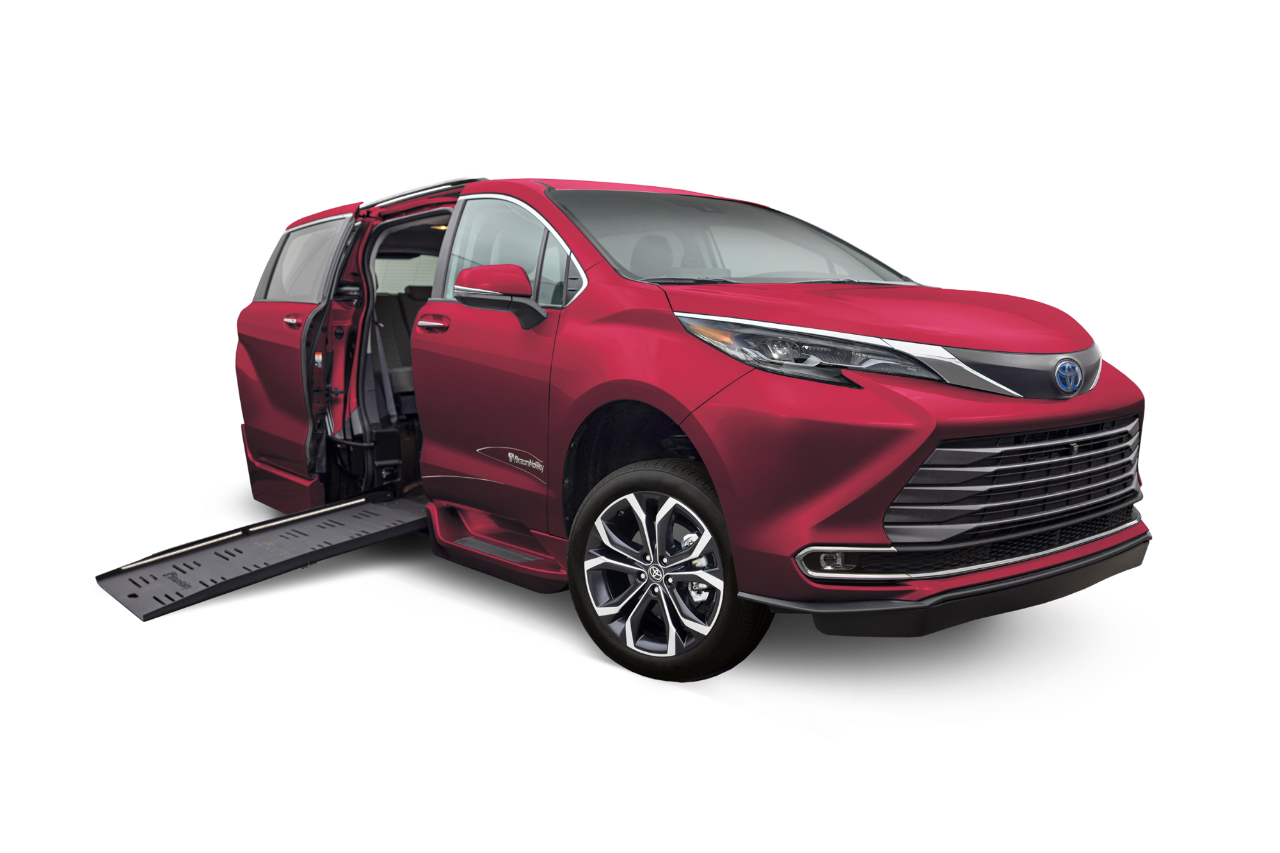

Toyota Sienna 2017-2020

Power Foldout

XL

56"

31"

29.25"

89.25"

57"

59"

7.25°

Toyota Sienna 2017-2020

Power Infloor

LI

54"

30.5"

30.25"

89.25"

57"

59"

8.7°

Toyota Sienna 2015-2020

Manual Rear-Entry

V7

54"

32.5"

32"

87"

N/A

N/A

9.5°

Toyota Sienna 2015-2020

Power Rear-Entry

V8

54"

32.5"

32"

87"

N/A

N/A

11°

BraunAbility Lifts for Power Chairs

If after looking through the Dimension Guide you determine your wheelchair width to be too wide for a conversion vehicle, perhaps a BraunAbility lift installed on a full-size vehicle could be a better option for you. Check out our Lifts Verses Ramps page to learn more about the differences between a BraunAbility lift and a BraunAbility conversion with an integrated ramp.
