Innovative Accessibility

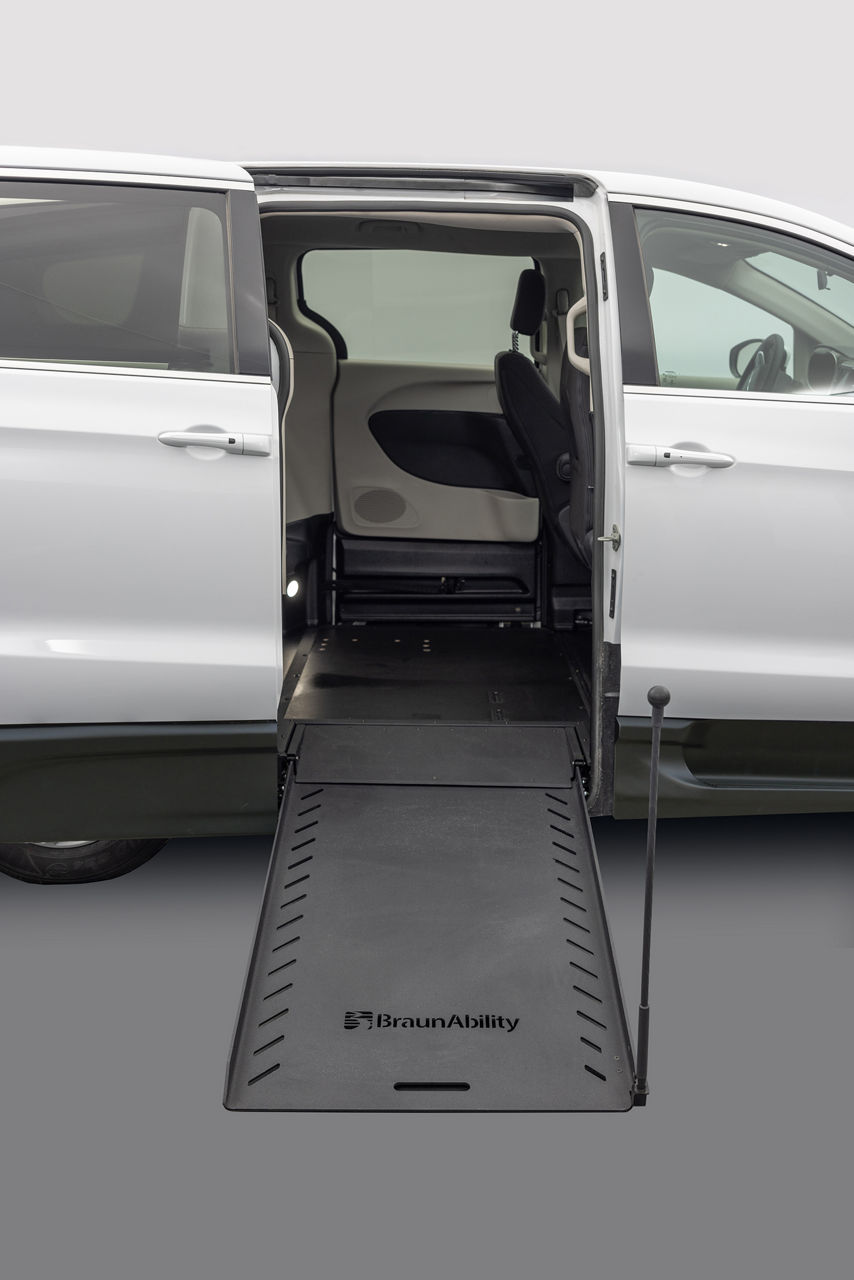

- Redesigned Infloor ramp assembly that meets or exceeds ADA compliance standards.
- Features a low profile step-in height and Chrysler assist handle to allow for easy entry and exit for able-bodied consumers.
Chrysler Commercial ADA Simple Stow Wheelchair Van Features
Ease of Use
- Low effort deployment of the infloor ramp with 60% less force that our previous model.
- Extended handle for user-friendly operation without bending down for most users.
Durability and Reliability
- Endured over 30,000 stow and deploy cycles at 150% of the recommended maximum operating speed.
- Designed for rigorous commercial use, ensuring long-lasting performance.
Compliance Standards
- ADA compliant design with fixed 2-inch-high edge guards for simplicity and durability.
- Option for Buy America compliant conversion, meeting necessary specifications.
Versatility in Transportation

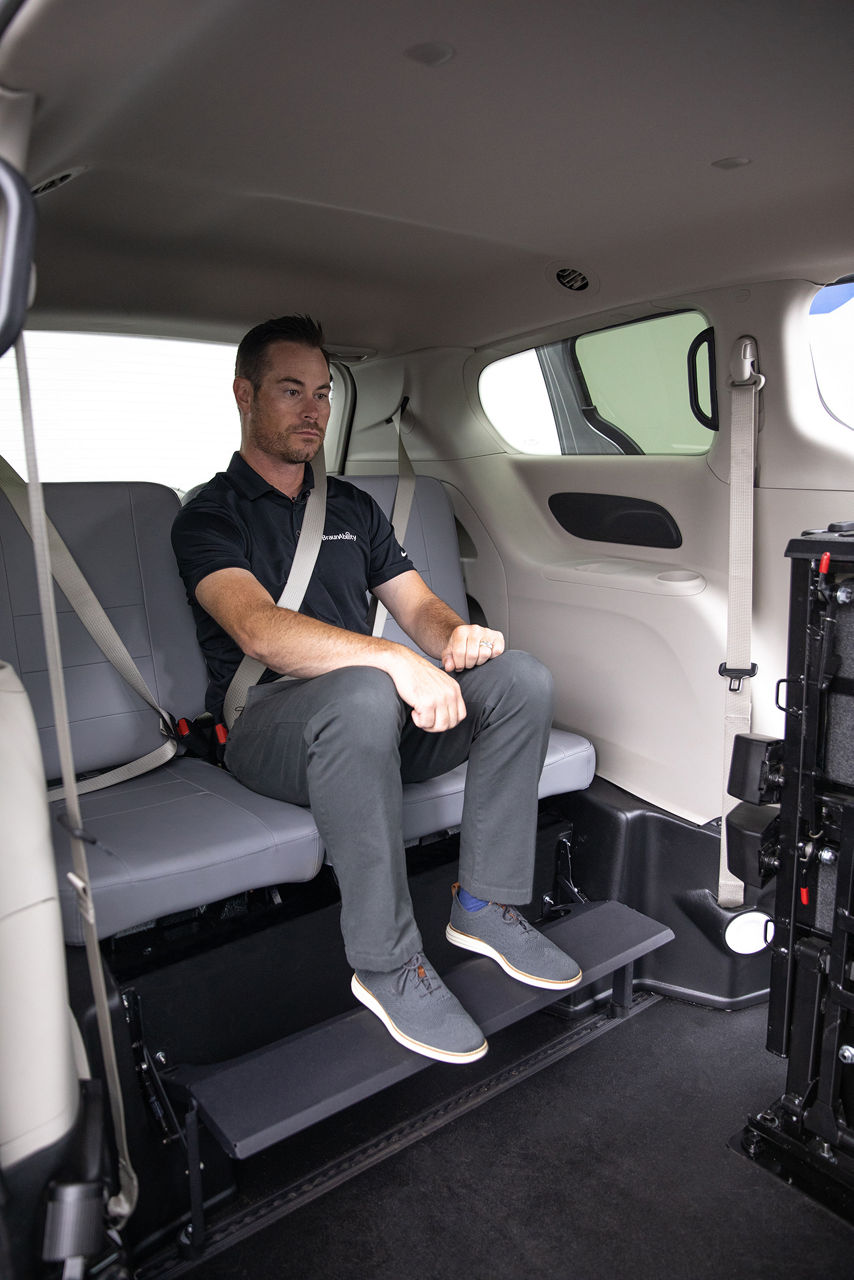

- Optional 2nd Row Freedman 2-passenger seat for diverse transportation needs.

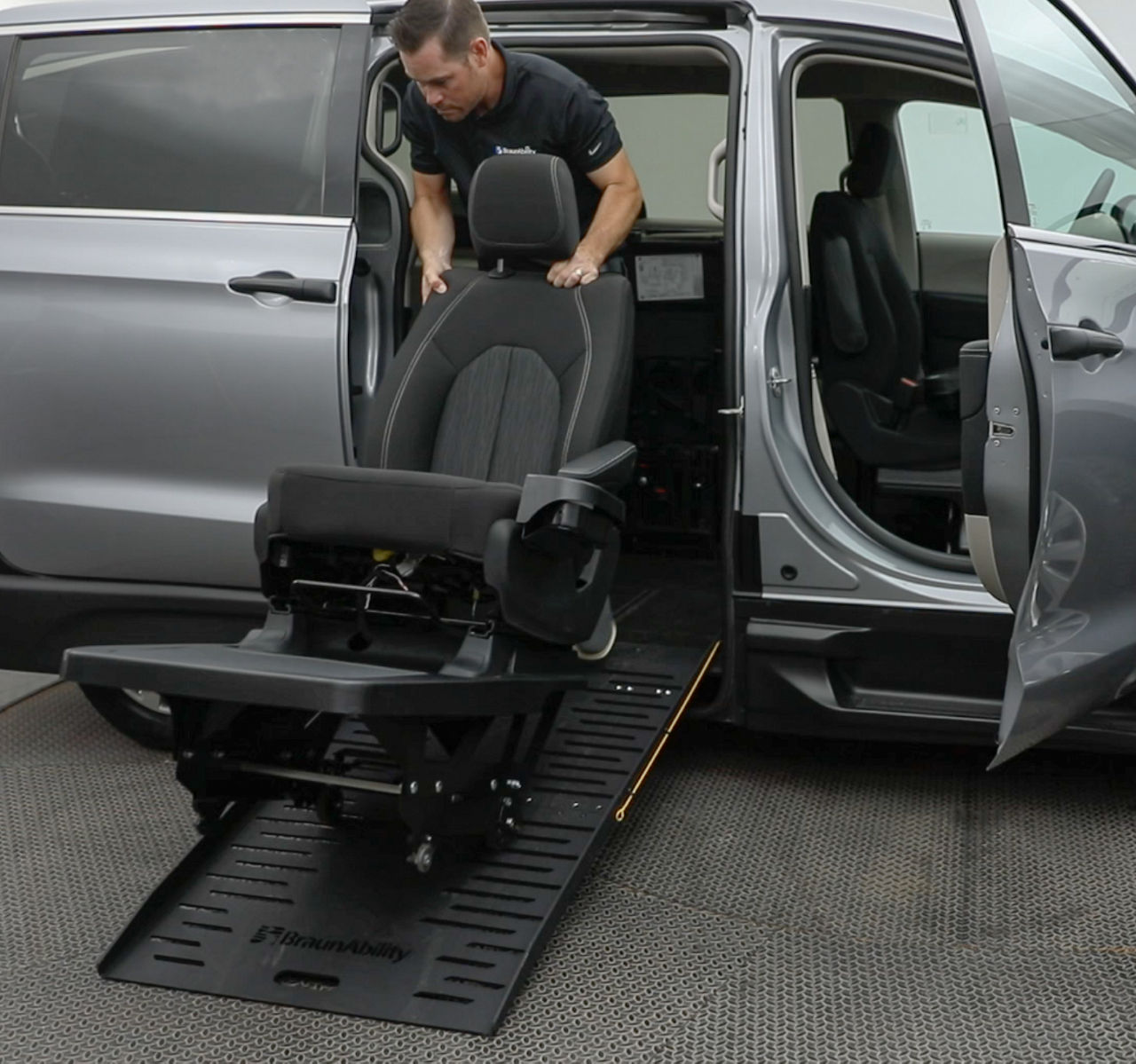

- Removable Front Passenger Seat for extra wheelchair accessibility
Built to Last
- Rigorous crash tests to meet or exceed all applicable requirements of FMVSS.
- Backed by a three-year limited warranty for added peace of mind.
Chrysler Commercial ADA Simple Stow Wheelchair Van Dimensions
| All dimensions are for reference only2 | ||
| Door Opening Usable Width | A | 31.5" |
| Door Opening Usable Height (at Middle of Door) | B | 56.75" - 56" |
| Interior Height at Center of Vehicle | C | 60" |
| Interior Height at Driver and Passenger Position |
D | 60" |
| Ramp Length* | E | 63.5" |
| Ramp Width (Usable Clear Opening) | F | 30" |
| Ramp Angle** |
G | 11° |
| Interior Floor Length (Behind Front Seat Strikers) | H | 66" |
| Overall Interior Floor Length (Flat Area) | I | 98.5" |
| Interior Width at Passenger Doors (Doors Closed) | J | 64" |
| Interior Width - Ramp (Deployed) to Optional 2-Passenger Seat (Stowed) |
K | 49" |
| Ground Clearance at Lowest Point (Curb Weight) |
L | 5.6" |
| Overall Vehicle Height (Unloaded) |
M | 80" |
Form Container - generic-contact-commercial-wav,generic-contact-commercial-wav
Please add openform-generic-contact-commercial-wav,generic-contact-commercial-wav class to buttons to show this form.
Please add openform-generic-contact-commercial-wav,generic-contact-commercial-wav class to buttons to show this form.
Frequently Asked Questions About the Chrysler Commercial ADA Simple Stow Wheelchair Van
What makes the BraunAbility Commercial Infloor with Simple Stow™ stand out in terms of accessibility?
Our vehicle is not just transportation; it's an emblem of inclusivity. The redesigned infloor ramp assembly surpasses ADA compliance standards, making it clear why BraunAbility was endorsed by mobility technicians at an impressive 15:1 ratio1. This vehicle is a groundbreaking solution that sets new benchmarks in accessibility.
How easy is it to deploy the infloor ramp?
Experience low effort deployment with our Infloor ramp, requiring 70% less force. This ensures easy wheelchair access, providing convenience and flexibility for both operators and passengers.
Is the operation user-friendly?
Absolutely. The extended handle ensures user-friendly operation without the need to bend down for most users. It adds convenience to the overall experience, making transportation more accessible and seamless.
Has the BraunAbility Commercial Infloor with Simple Stow™ undergone durability testing?
Yes, our commitment to reliability is evident in the extensive durability testing. The vehicle has endured over 30,000 stow and deploy cycles at 150% of the recommended maximum operating speed, providing peace of mind for rigorous commercial use.
How does it meet or exceed specifications, especially ADA compliance standards?
The vehicle features a design with fixed 2-inch-high edge guards for simplicity and durability, that meets and exceeds ADA compliance standards. Additionally, there's an option for a Buy America compliant conversion, ensuring that our product meets the necessary specifications.
Can the BraunAbility Commercial Infloor with Simple Stow™ cater to diverse transportation needs?
Absolutely. The vehicle comes with an optional 2nd Row Freedman 2-passenger seat, adding versatility to the transportation options and accommodating various passenger requirements.
What safety measures are in place?
Safety is paramount in our design. The ADA Infloor with Simple Stow™ has undergone rigorous crash tests to meet or exceed all applicable requirements of the Federal Motor Vehicle Safety Standards (FMVSS). It is also backed by a three-year limited warranty for added peace of mind.
Is the vehicle Buy America compliant?
Yes. The Chrysler ADA Simple Stow Wheelchair Van is Buy America compliant.
How can I learn more information about the product?
Contact us for more information on this exciting new product.
