BraunAbility® NL500 Series Commercial Wheelchair Lifts for 24 Volt Motorcoaches

Redefining Commercial Wheelchair Lifts for Motorcoaches

BraunAbility offers several wheelchair lift models to address the specific needs of motor coach manufacturers, including the NL500. Since motor coach lifts are very specific to the application, we recommend that you contact your nearest BraunAbility commercial dealer for details.

Braun NL500 Series lifts are built for dependability and will provide years of pleasure and independence as long as the lift is installed and serviced as specified by a BraunAbility certified technician, and the lift is operated by an instructed person.

The NL500 Power Out (extended), Up, Down, and Stow functions. The rotating handrails and two-stage platform are manually operated. NL500 Series lifts are equipped with hardened pins and self-lubricating bushings to decrease wear, provide smooth operation, and extend the service life of the lift.

Proper maintenance is necessary to ensure safe, trouble-free operation. Inspecting the lift for any wear, damage, or other abnormal conditions should be a part of the transit agency daily service program. Simple inspections can detect potential problems. The maintenance and lubrication procedures must be performed by a BraunAbility-authorized service representative at the scheduled intervals according to the number of cycles. The NL500 Series lifts are equipped with a cycle counter (digital display built into the electronic control board).

The NL500 comes with the BraunAbility “Worry-Free” Limited Warranty and unmatched product and repair support.

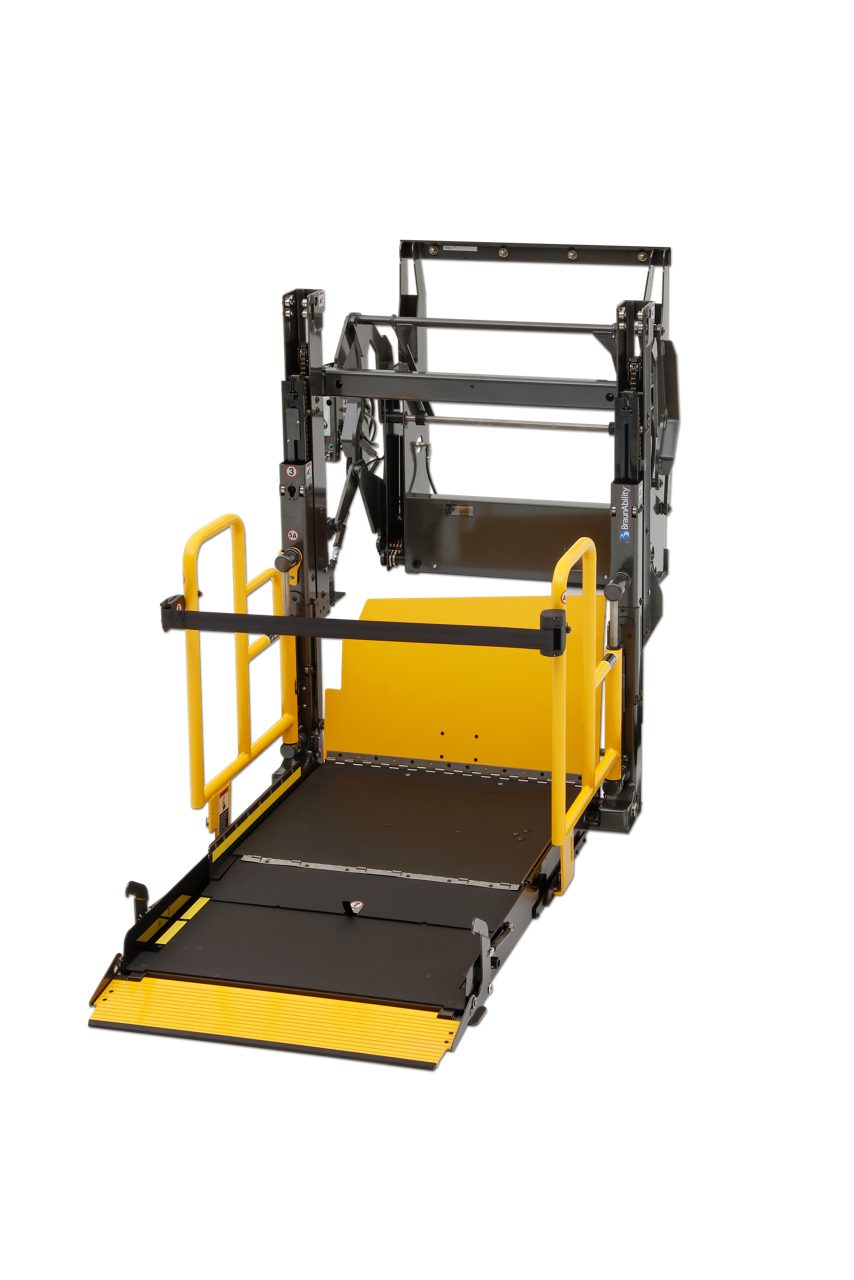

NL 500 Wheelchair Lift

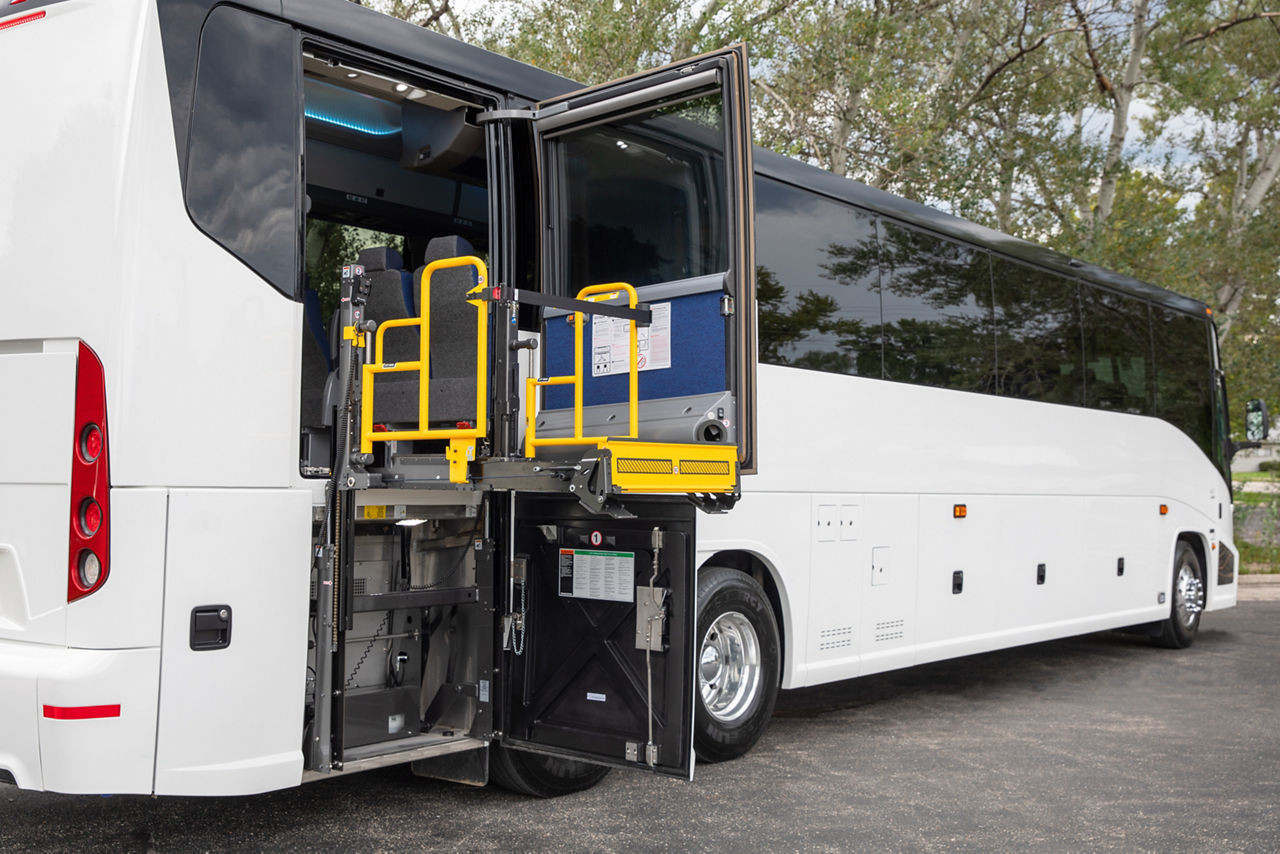

NL 500 Wheelchair Lift

Features Include:

  • FMVSS 403 Compliant
  • Automatic inboard/outboard barriers
  • 600# lifting capacity, 450# lift weight
  • Hydraulic in/out motion
  • Manual folding/unfolding handrails
  • Manual platform folding/unfolding
  • Manual pull-out platform extension
  • Hydraulic up/down telescopic motion
  • 24-volt system
