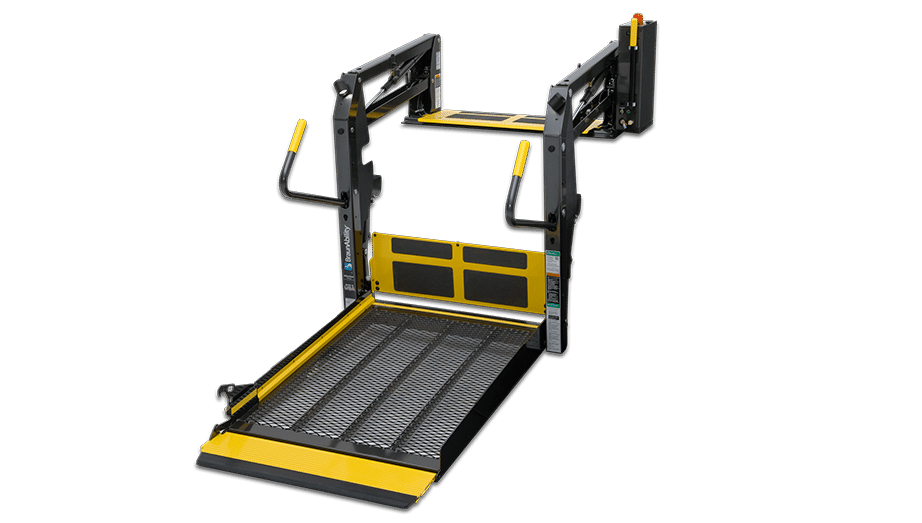

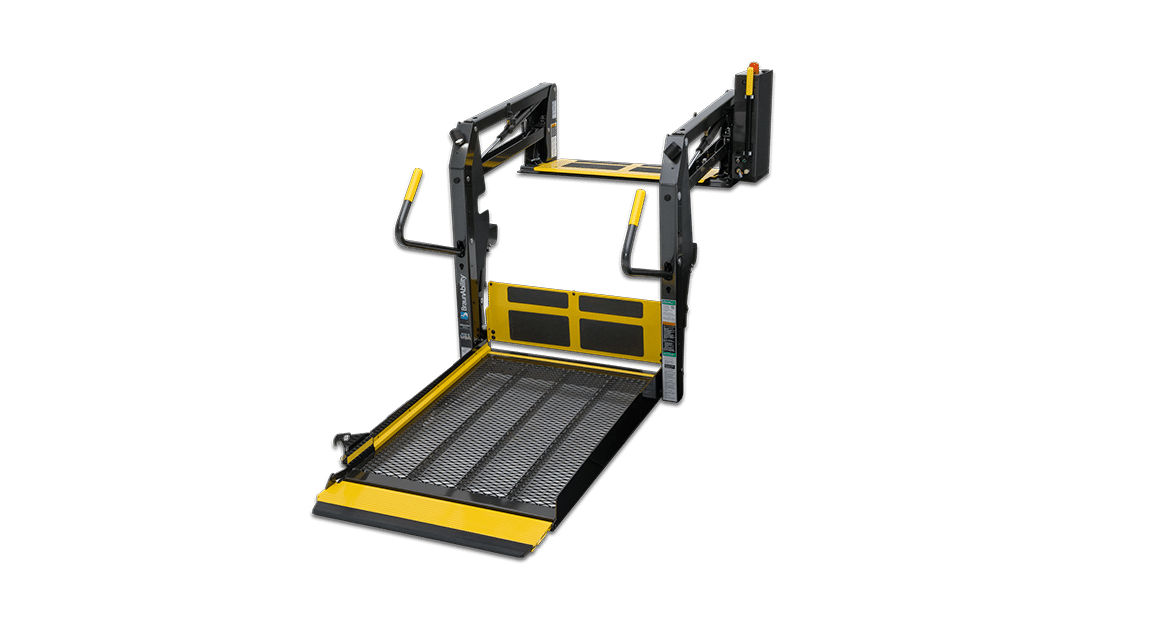

Millennium Series NL-2 Commercial Wheelchair Lift
A Stronger Commercial ADA Lift for School Buses, Cutaway Buses, and Paratransit Vans
With dual hydraulic lift arms and a design that has withstood the test of time, the Millennium Series offers all the benefits and trouble-free operation of a BraunAbility ADA lift electrical system, while the hydraulically activated outer barrier keeps the wheelchair safely and securely on the wheelchair lift platform throughout the lifting cycle.
BraunAbility's portfolio contains several models of the Millennium 2 Wheelchair Lift to address the right application, including usable platforms of 33" x 51", 34" x 51", 34” x 54” and 37" x 51". The models also vary based on the placement of the front or rear pump module, the lifting capacity (800 pounds), and the overall floor-to-ground lift height (up to 48"). The Millennium 2 Wheelchair Lift is available with or without the handrail belt. See your BraunAbility dealer for lift models available for your specific application that meet ADA wheelchair lift requirements.
NL-2 Millennium Series Wheelchair ADA Lift Standard Features:
- 800-pound lifting capacity
- ADA and NHTSA-compliant
- Fully automatic FMVSS 403-compliant lift, operated by an attendant
- Interfaces with OEM interlocks
- Long-lasting LED lift-mounted lights
- Side or rear door application
- Floor to ground lift heights up to 48"
- Made in the USA
- Hydraulically operated roll-stop
- Excellent reliability and durability
- Easy installation
The Millennium 2 Series ADA lift also features new and improved inboard barriers, baseplates, vertical channels, and lower parallel arms for a more rigid and stable ride.
Ease of Use Features for the Millennium ADA Lift

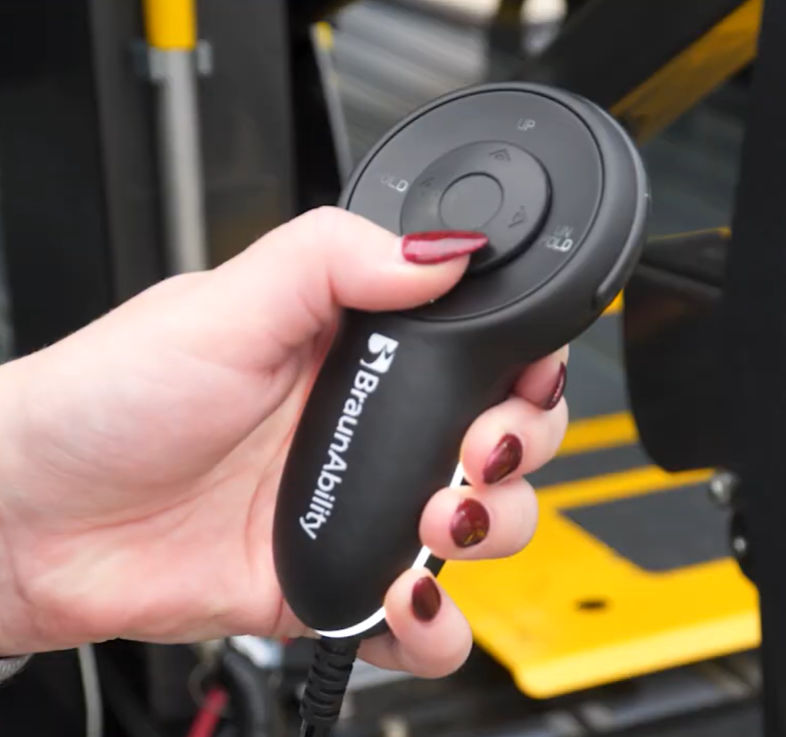

- Hand-held control box with illuminated functions
- Durable redesigned baseplate reduces lift weight and allows for quicker and easier service
- Bridging feature permits the wheelchair user to board the lift from sidewalks
- Equipped with an adjustable anti-rattle feature

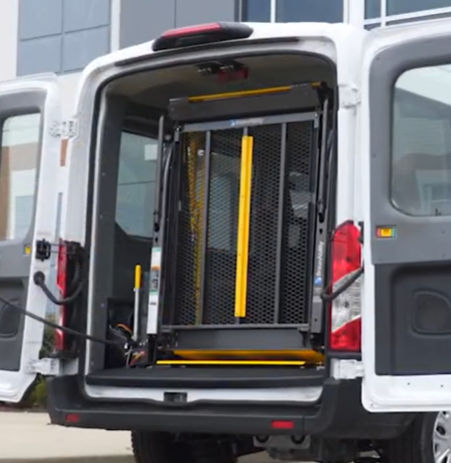

- Lift-Tite™ system stows the lift platform securely while the vehicle is in transit
- Pump module with removable cover offers easy access to all components
- Integrated back-up pump
Unrivaled Commercial Mobility Product Service from BraunAbility
Every commercial ADA lift comes with our team of commercial mobility experts. They will work to find the ideal mobility transportation soultion, no matter the requirements, complexity, or scale. And after you make a purchase, they will continue to work just as hard to offer you all the service and repair support you need.
Please add openform-generic-contact,generic-contact class to buttons to show this form.
MILLENNIUM SERIES - COMMERCIAL WHEELCHAIR LIFT SPECIFICATIONS - IN COMPLIANCE WITH United States Department of Transportation Rules and Regulations 49CFR, Part 38. FROM THE AMERICANS WITH DISABILITIES ACT OF 1990 and NHTSA Rule 403 (2004) “Provided to make your spec writing easier.”
The wheelchair lift is compliant with Federal Motor Vehicle Safety Standard 403 for platform lift systems for motor vehicles. The lift shall have been tested to a minimum static load of 2400#. The lift shall have 800# rated lifting capacity. The base plate shall be a corrugated designed member to provide rigidity to minimize lift deflection when placed under load.
The power supply shall be a 12-volt electro-hydraulic system operating two single-acting cylinders. The hydraulic power pack system shall be of a modular design allowing for easy removal and field replacement if needed. The operation of the unit shall provide a smooth, jerk-free ride in both up and down directions. The power operation of the hydraulic cylinders shall be of a pull-type design for smooth lifting operation and improved synchronous arm movement. The pivot pins in the trunnion (knuckle) of the pivot arms shall be of stationary design. The hydraulic system shall be regulated by two separate relief valves, one of which is designed to prevent accidental stowing when occupied.

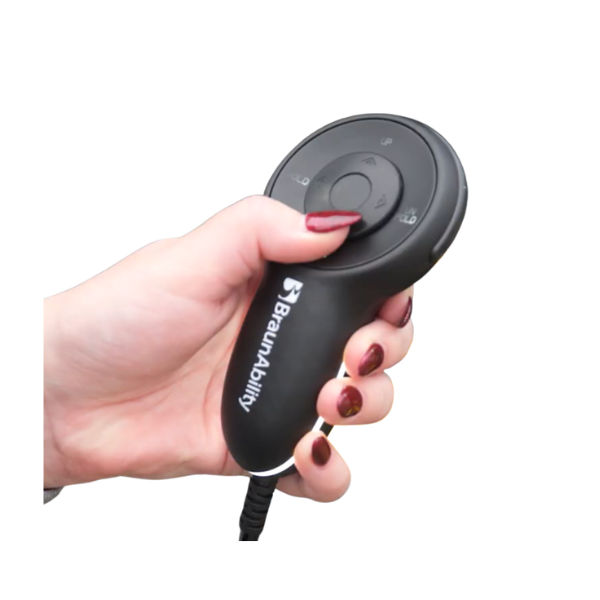

The hand control for lift operation shall be of a one-hand operation design made of durable plastic. The hand control will provide the user with illuminated functions. The hand control cable shall be coiled with quick-change connections for ease of maintenance or field change.
A manual back-up system shall be provided to ensure the operation of the lift in case of electrical failure. The backup system shall provide a reliable means of manually raising and lowering the lift while occupied. The back-up system shall fold and unfold the platform. The back-up pump shall be integrated with the hydraulic power pack system such that no hydraulic lines or fittings are required.

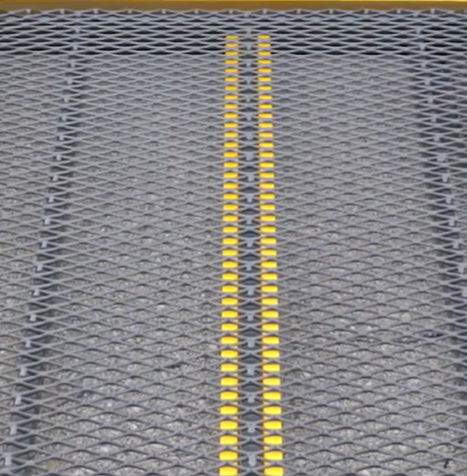

The platform shall be of steel construction and the surface shall be of see-through grating allowing for improved visibility and safer use in inclement weather. The platform shall have a minimum usable wheelchair passageway width of 33 inches and a minimum usable length of 51 inches requiring a 57-inch vertical clear door opening. The sides of the platform shall be a minimum of 2.5 inches high.
The platform shall be automatically folded and unfolded and fully automatic in operation. The platform shall allow both inboard and outboard facing of wheelchair and mobility aid users. The platform entrance ramp shall be extruded aluminum for weight savings, have a rubber leading edge and raised ribs for traction. The outer barrier shall be hydraulically activated, and must be in the vertical (deployed) position prior to platform movement. The outer barrier must not raise if occupied with 25 lbs. The outer barrier shall be the sole outboard wheelchair retention device and shall be interlocked and comply with the FMVSS 403 requirements. Dual handrails shall be provided to add security and convenience. These handrails shall be 1.25-inch minimum diameter, minimum 30 inches in height, minimum of 8 inches in length, and withstand a 100# force in any direction (including vertical) without permanent deformation. The lift must have a fail-safe system to prevent stowing if solenoid welds. The platform shall have “built-in” lighting to meet 404 platform lighting requirements with no auxiliary lighting.
All lift components shall be finished with a baked-on powder coating, which will meet a salt spray test of 1000 hours, to provide corrosion resistance and long service life. BraunAbility Millennium Series to include but not limited to the following model numbers: NL917IB-2, NL917FIB-2, NL919IB-2, NL919FIB-2, NL917IB3751-2, NL917FIB3751-2
