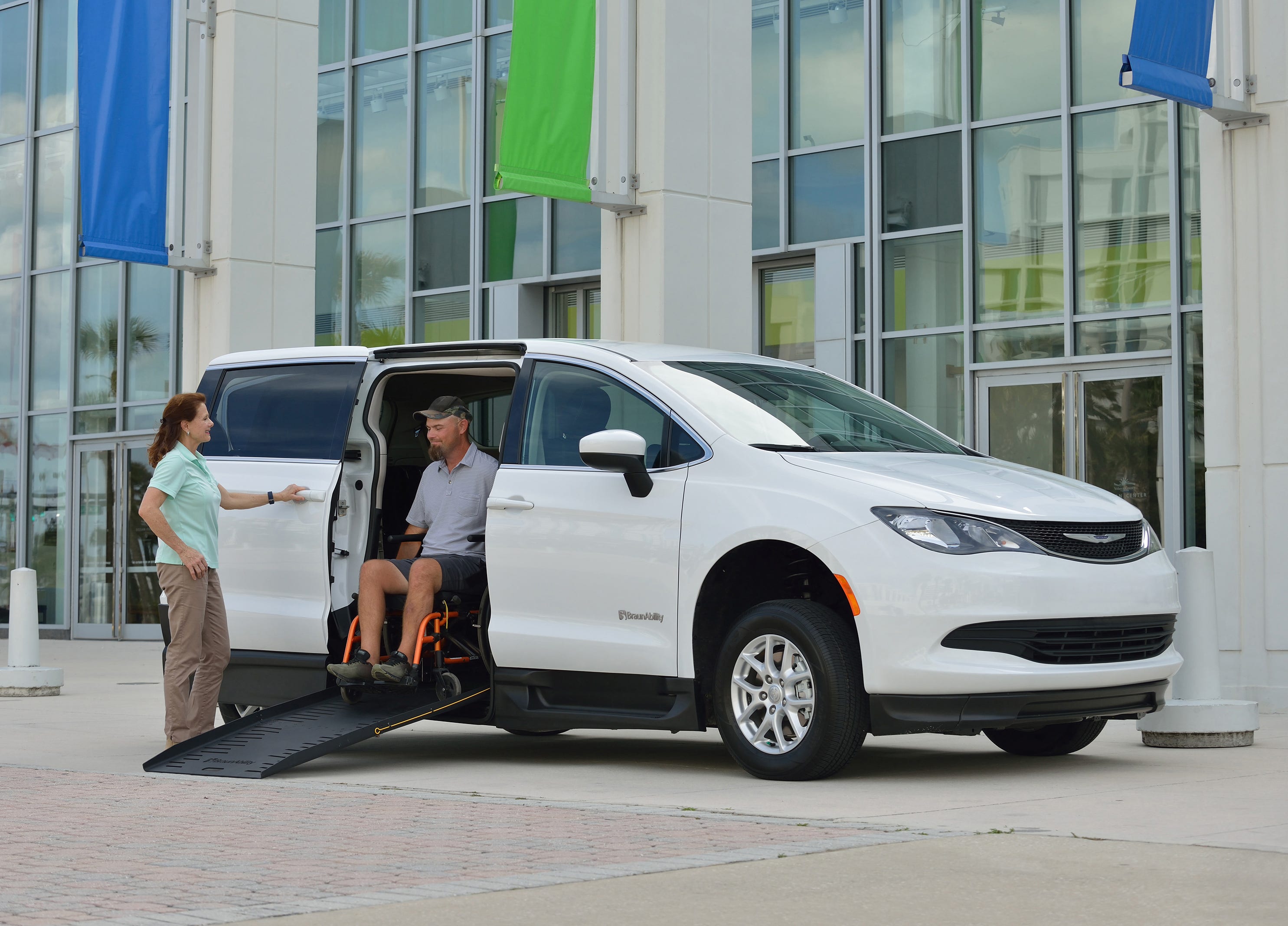

The Voyager ADA Van from BraunAbility
The Commercial Side-Entry wheelchair accessible vehicle has been a cost-effective, workhorse product for paratransit providers and transportation services. Leveraging almost 50 years of experience in mobility transportation solutions, BraunAbility introduces with the newest addition to the Commercial fleet, the Chrysler Voyager. The side-entry foldout has all the ADA-compliant features of the Dodge Grand Caravan but with 15% more cabin space for easier maneuverability, more seating positions, plus enhanced space at the toe pan for wheelchair footrests. The new conversion also features the much more durable thermoplastic (TPO) front, side and rear flares to absorb minor impacts while protecting the exterior look of the vehicle. An LED spotlight package for the ramp and cabin as well as an easy access footrest for rear seating adds to the overall ease of use for both operators and passengers.
- 15% more cabin space vs. Dodge Grand Caravan
- Seating for up to 7 ambulatory1; up to 2 wheelchair positions
- Added space at front for wheelchair passenger footrests
- Hard-wearing TPO front, side and rear flares to absorb minor impacts
- Reinforced, heavy-duty swing-out ramp and latch
- Enhanced ADA lighting package
The Voyager Commercial Side Entry comes standard with an easily removable front passenger seat with wheelchair securement positions in the front and midrow. The optional aftermarket midrow folding seat increases the seating capacity when needed.
Safety has always been a top priority at BraunAbility. The Voyager Commercial Side Entry has been crash tested and certified to meet or exceed all applicable requirements of the Federal Motor Vehicle Safety Standards (FMVSS) and is backed by our three-year limited warranty.
- ADA, FMVSS and CMVSS Compliant
- CARB approved
- 7-passenger vehicle (with optional aftermarket 2nd row 2-passenger folding bench seat)
- Lowered floor from toepan to rear axle
- 60” floor-to-ceiling at center of van
- 30” wide manual ramp with 1,000 lb capacity and swing-out feature for ambulatory access
- Multiple wheelchair securement locations
- One wheelchair securement system
- Manual driver and passenger side sliding door providing 56“ vertical opening (ADA compliant), passenger door provides clear opening width of 31” (excluding OEM grab handle)
- Step-and-Roll removable front passenger seat
- 3-passenger bench seat at rear with folding footrest
- Front passenger floor tracks for wheelchair securement, with 60” floor-to-ceiling height
- TPO plastic lower body panels with integrated steps
- Vinyl flooring with 3/8” underlayment, a thermoplastic honeycomb panel subfloor
- ADA-compliant park interlock
- ADA-compliant ramp and door entrance lighting
- Priority seating and wheelchair securement location decals
- Auxiliary wiring harnesses include fused circuits
- Emergency rear hatch release
- Easy maintenance interior trim package
- 19 gallon OEM fuel tank
Optional Features
- Aftermarket 2nd row 2-passenger folding bench seat
- DOT kit
- Additional set of tie-downs
